Optic Fiber Mismatch - Solution is Mode Conditioning-Which Can go Maximum of 770 Meters  (Converter Plays vital role- Please check with vendor)   A mode conditioning patch cord is a special  fiber patch   cable  that combines multimode fiber cable and single mode fiber cable with calibration. It is a duplex multimode fiber patch cord constructed with a length of single mode to multimode offset fiber connection part at the start of one of the two legs. Mode conditioning patch cables are 62.5/125µm or 50/125µm fiber cables assembled with fiber connectors on both ends, such as LC-LC, LC-SC, SC-ST, etc.



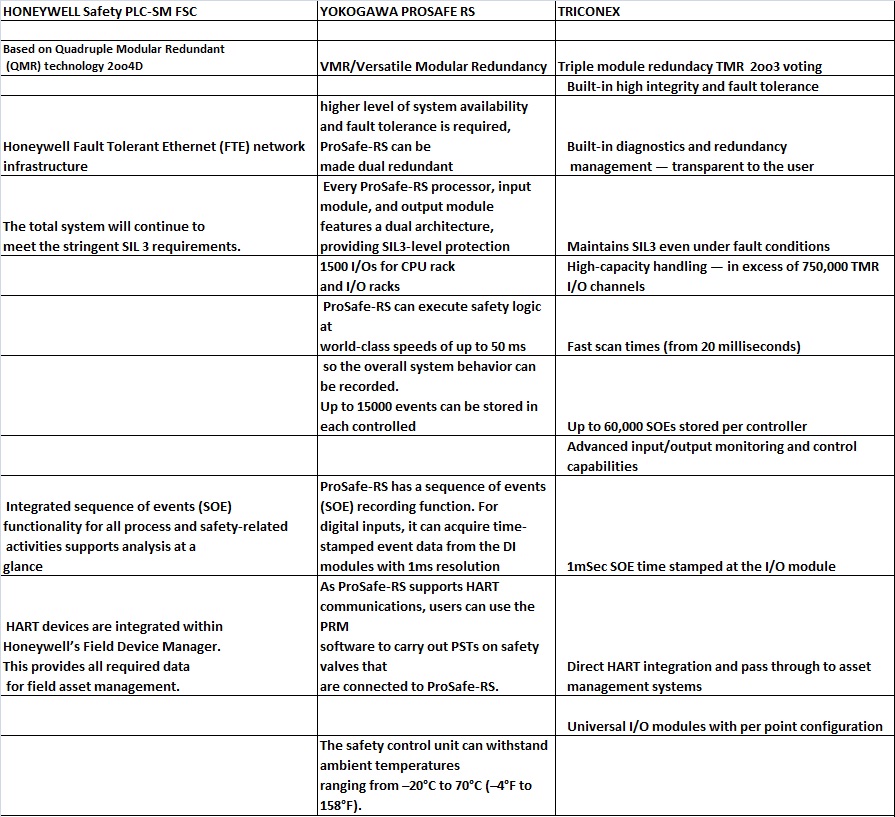

SIL Notes Objective : SIL assignment establishes the risk reduction needed for each                     process system to protect against one or more hazards,                      The risk reduction is calculated as the gap between the existing risk posed by the                          process or  equipment and the risk target.                     Risk reduction (Layer of Protection) is provided by process and mechanical                                  integrity, Independent Protection Layers (IPLs) and required Safety Instrumented                      Systems (SIS). Scope :  The SIL level of each Safety Instrumented Function (SIF) is to be calculated,               Design of Safety Integrated Systems is adequate to protect personnel, environment,                      assets, reputation and local safety against potentially hazardous situation               This study only performed an assessment of the required SIL levels for each SIF/               ESD loop

HAZOP notes *1 >>> The HAZOP study is primarily an audit review or problem              identification analysis based on Process P&ID-CE,F&G CE *2>>>  Problems associated with any design,were identified in a highly systematic manner studies *3>>> The objectives of  project basis HAZOP study were to identify process or operability related hazards such as potential for over pressure/under pressure and the toxicity/ flammable properties of process gas, fluid and to identify specific safeguards which are used to  control or eliminate the hazards *4>>> The operability hazards considered were generally operational upsets leading to serious consequences.Systems such as emergency isolation valves, gas detection,drainage, fire proofing, pressure relief and emergency depressurization systems were evaluated on the basis of their effect  on the process and operability hazards. Large portions of these systems were considered as safeguards for th

Suggested Initial PID Tuning Parameters                  Service                                   P / Proportional   I / Integral              D / Derivative                                                                 K                              T1                            T2                                                                                                 minutes                  minutes                 Flow                                       0.3                          0.15                        -                 Level   (averaging)                1-2                          10-20                     -                 Level   (tight)                         2                              5-10                        -                 Pressure   (liquid)                  0.3                           0.2                          -                 Pressure   (gas)                      2-4                           5
